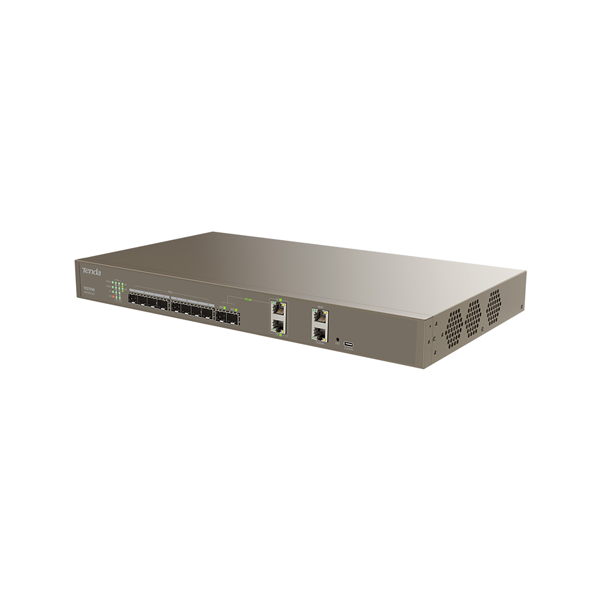

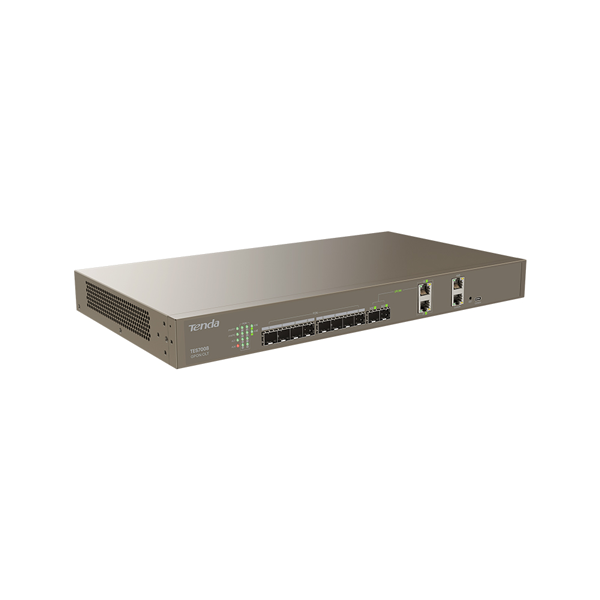

OLT (پایانه خط نوری) با 8 پورت GPON تندا مدل TES7008

OLT (پایانه خط نوری)

(L x W x H) 440*240*44mm

1*1000Mbps RJ45 NMS Port, 1*Console port RS-232, 1*Console port Typec, 2*1000Mbps RJ45 Ports, 2*10G SFP/SFP+ Port, 8*GPON Ports

Reset Button

ITU G.984.x, ITU G.988

1*ACT, 1*ALM, 2*PWR, 2*XGE, 8*PON

Follow ITU-TG.984.2 ClassB+/ClassC+/ClassC++

RX 1310nm, TX 1490nm

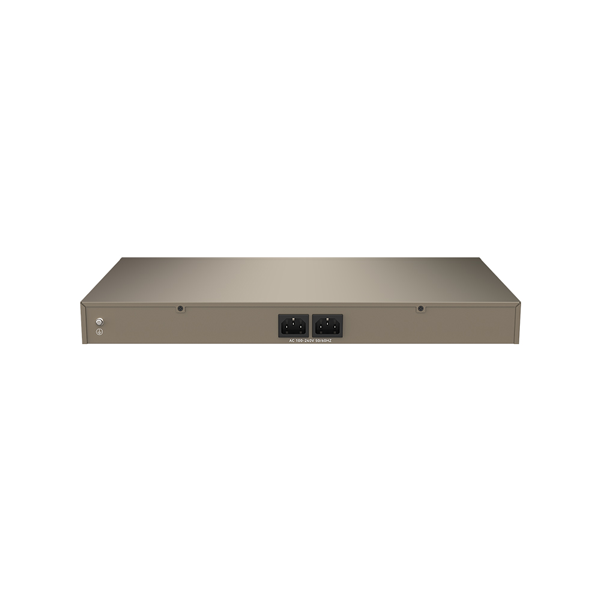

AC: 100～240V, DC: -40V～-72V, Dual redundant power supply design, supports AC, DC or mixed power input

20km Max

Downstream 2.488Gbps, Upstream 1.244Gbps

1024

32k

Support 1:1 VLAN Translation based on template binding, Support 4K concurrent VLAN, Support flexible QINQ based on report matching type (MAC/IP/CVLAN/ETH-TYPE), Support VLAN priority (COS) remark, Support VLAN Transparent/Tag/Trunk mode

Support Concurrent 2K muliticast groups, Support IGMPV2, Support SNOOPING and PROXY

destination IP and port, Provide illegal frame filtering and packet filtering function based on soure MAC (Medium Access Control), source IP

دارد

IEEE802.X flowcontrol

CE, RoHS

Support auto alarm when link index degrades, Support batch ONT and OLT remote upgrade, Support batch ONT optical parameter detection, Support CLI、WEB and SNMP network management, Support in-band and out-of-band management, Support PON port optical parameter detection, Support Port Rate Limit, Support Port Rate Mirro, Support Port Statistic And Monitoring, Support STP and RSTP, Support Uplink port optical parameter detection, Supports dual power redundancy backup, the dual mirroring software and configure

۳ سال گارانتی آسان پیشرو

تندا (Tenda)
